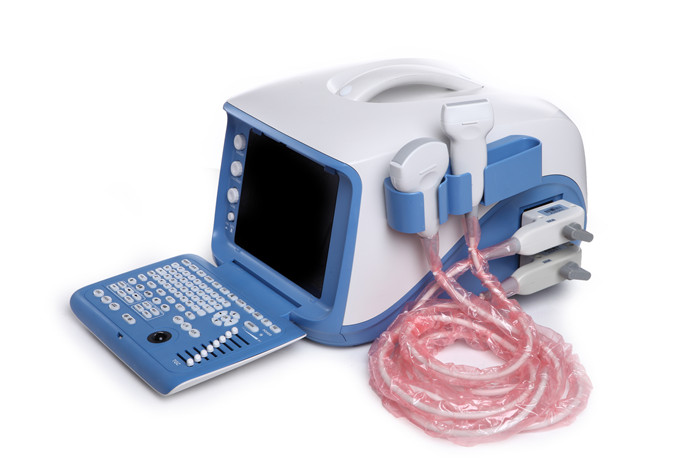

SH1000  Technical Specifications

Main technical features:
1. Monitor: 10 inch
2. Scanning mode: B、 B+B、 B+M、 M 、4B
3. Image gray scale: 256
4. TCG adjustment: 8 segments
5. Depth adjustment: 40mm-240mm
6. Storage: U Disk
7. Dynamic range: 100 dB
8. Focus adjusting: 4 focus  available
9. Cine loop: 512
10. Partial zoom: 2.0 (real time and frozen)
11. Depth  promote: In B、B+B mode
12. Reversal: Up/down, left/right
13. Measurement &calculation: distance, area, circumference, heart rate ,depth and valve speed. Obstetric checking software: for BPD; FL; CRL; GS; HC; AC; fetus weight, delivering date, pregnancy time.
14. Display info: Patient information input: date and registration code display, full screen wording function.
15. Body marks: 30
16. Power consumption: ＜150VA

Standard Configuration:

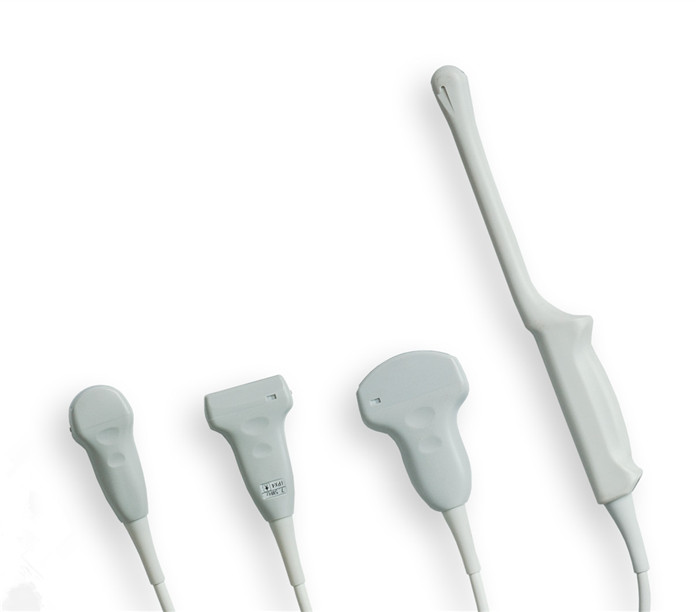

3.5MHz (80 elements, R=50mm) Convex probe

Options:
7.5 MHz (80 elements) High frequency linear probe
3.5 MHz (80 elements, R=20mm) Cardiac probe
6.5 MHz (80 elements, R=11mm) Trans-vaginal probe
Trolley
LCD monitor
Thermal Printer

Convex probe
High frequency linear probe
Cardiac probe
Trans-vaginal probe
