SH1200  Technical Specifications

Main Specification
1.·Scanning mode: Convex/Linear/Trans-vaginal;
2. ·Display modes: B, B+B, B+M, M, 4B Scanning depth: 240mm;
3. Frame rate: 400 fps
4. Scanning angle: 300 to 1500
5. Cine loop: 1024 Frames
6.·Gray scales: 256;
7.·Body marks: 128;
8.·Image conversion: up/down, left/right, black/white;
9. .Function of puncture guide;
10. ·Per: 4-stage per function;
11. ·Printer function: can connect laser printer and Video printer directly;
12. Comment: Date, Name, Sex, Age, Hospital, Annotation;
13. ·Zooming: *0.8, *1.0, *1.2, *1.5, *2.0;
14. Port: USB 2.0, VGA, Video connector;
15. ·Wide application: abdomen, OB/GYN, urology, cardiology etc;
16. USB Function of image store: more than Sixteen thousand images;
17. ·Power supply: AC 110V-240V, 50HZ/60HZ;
18. Probe connector: 3

Main Unit
·60R/3.5MHZ Convex array probe;
·USB2.0, VGA port;
·Video connector

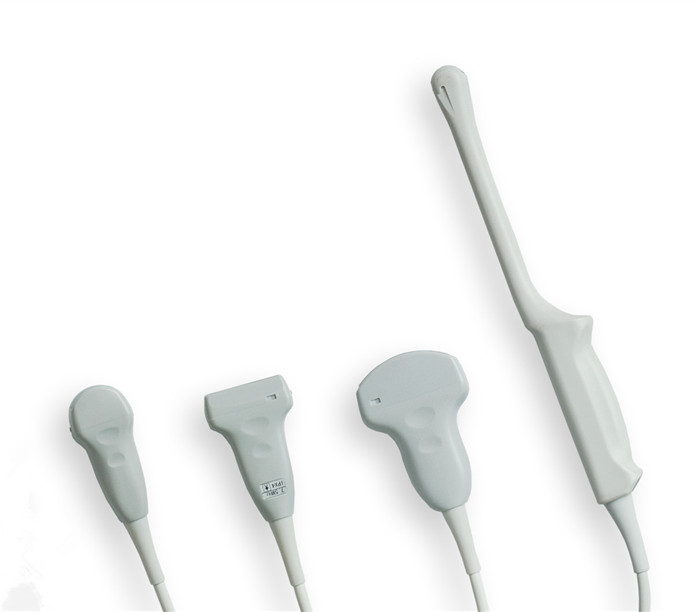

Options
·L40/7.5MHz Linear array probe
·20R/5.0MHz Micro-Convex array probe;
·13R/6.5MHz Trans-vaginal array probe;
·Printer

Main Features:
·Powerful measurement & calculation software packages;
·8-Segment TGC adjustment;
·17 inch LED Medical Grade Monitor;
·OB measurements: BPD, GS,CRL, FL, AC, HC, ect;
·Permanent function of image store: 32 images;

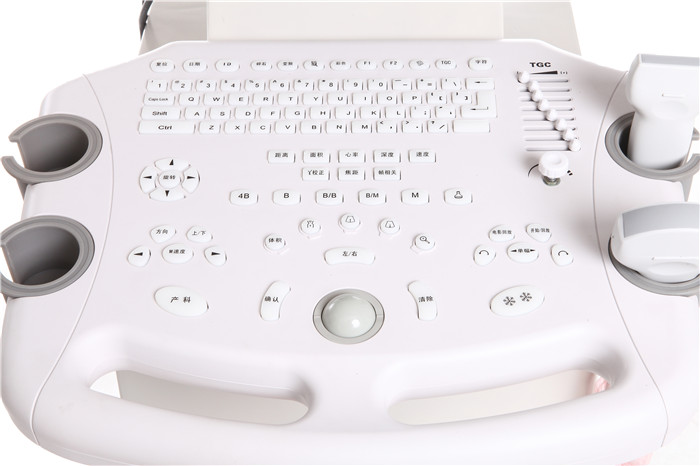

·Back-lit keyboard;
·3 probe connectors;
·Probe automatic identification
·Real Time Dynamic Filtering (RDF)
·Dynamic Frequency Scan (DFS)
·Digital Beam Former (DBF)
·Dynamic Receive Apodization (DRA)
·Dynamic Receive Focusing (DRF)
