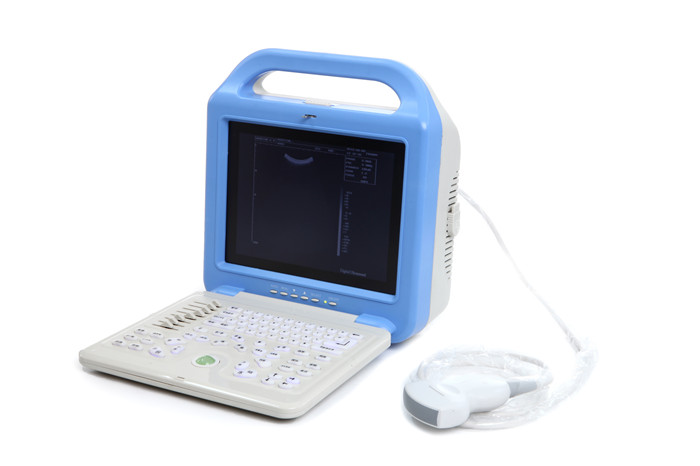

SH1500 Technical Specifications

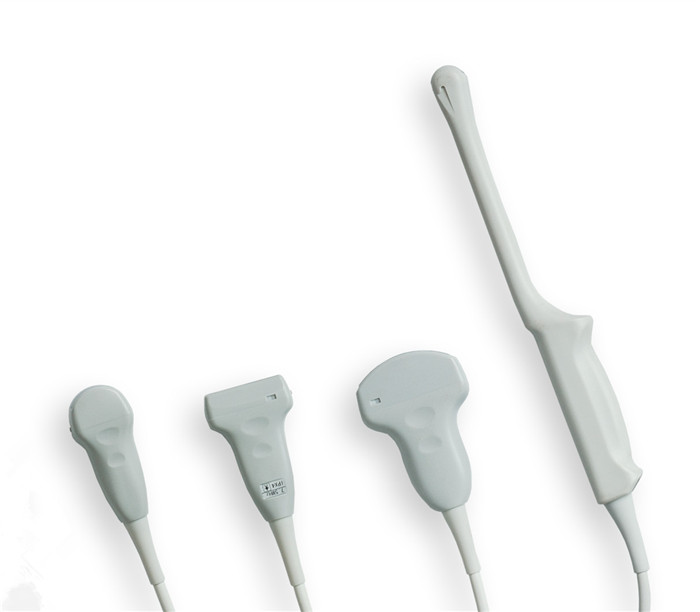

1. Scanning mode: Electronic Convex, Cardiac Probe, Electronic Linear
2. Display mode: B、 B+B、 B+M、 M 、4B
3. Magnification: ×0.8、×1.0、×1.2、×1.5、×1.8、×2.0 six modes；
         When ×1.8、×2.0, can improve display depth.
4. Partial zoom: 2.0 (real time and frozen)
5. Dynamic range: 64---96dB
6. Focusing: dynamic digital electronic focusing
7. Pre-processing: variable aperture, dynamic range, dynamic filtering
8. After-processing: 8 types of γcorrection, line correlation, frame correlation, point and line correlation, linear interpolation, digital space filtering, digital edge enhancement, 16 types of pseudo color processing and so on.
9. Frequency: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five types of frequencies
10. Measurement & calculation: distance, circumference, area, volume, ellipsometry, heart rate, pregnancy week （BPD、GS、CRL、FL、AC）, delivering date, fetus weight and so on.
11. Note function:
   --hospital name, doctor; patient name, age, gender, medical record No.;
   --16 types of probe position body marks;
   -- Full screen characters notes;
   -- Real time clock display.
12. Guided to puncture: B mode image has the puncture guide function
13. TGC control: 8 segments TGC, overall gain adjustable
14. Image reversing: left/right, black/white, up/down
15. Image storage: real time display 256 frames continuous store
16. Cine loop: continuous replay or check each frame one by one
17. Forever storage: 127 frames available store
18. Output port: SVGA video output, can equipped with SVGA color monitor
          PAL video output, can equipped with PAL monitor, video image record machine, images work station and so on.
          Can expand USB ports.
19. Expansion: can be equipped with different kinds of high-frequency probes.
20.Main Technique specifications
   Probes: 80 elements R60.
   Probe standard frequency: 3.5 Mhz.
   Scanning depth: ≥180mm.
   Horizontal resolution:  ≤2mm(depth≤80mm)
                        ≤3mm(80    Axial resolution:  ≤1mm(depth≤80mm)
                   ≤2mm(80    Dead zone: ≤4 mm
   Geometric position:  Transverse≤5%
   Longitudinal≤5%
21. Monitor:10inch SVGA high resolution monitor. (Trolley equipped with 14 inch high resolution monitor)
22. Gray scale: 256 levels。
23. Power range: AC 220V±22V 50Hz。
24. Input power: ≤ 120VA。
25. Continuous work time: ≥8h。
26. Standard configuration
    --1 host
    -- 1 3.5MHz Convex probe
    --1 monitor
    --1 Ground line
    --1 Power adapter
27. Optional:
   --6.5 MHz Trans-vaginal probe
   --7.5 MHz High frequency linear probe
   --Ultrasonic Imaging Work Station
   --Segregated Cart (portable equipment)
