Technical  Specifications

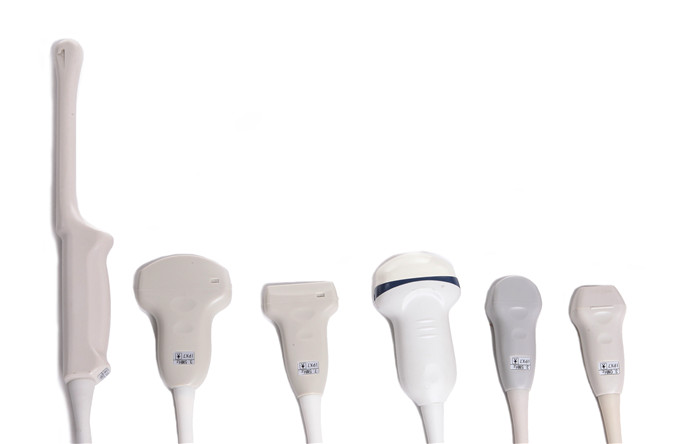

1.  Probe type
   --Probe socket:4
   --Probe frequency: 2.0MHz-10.0MHz,8-stage multi-frequency
   --Probe class: Large convex, slight convex,linear array,in-cavity.
2.  Display mode
   --B/W image: B,B/B,4B,left and right B/M,B/D,PW,M Bmode locally amplified
   --Bloodflow image CFM: B/C,BC/B,B/BC
   --Specturm: B/D,B/C/D,PW
3.  Adjustment parameters
   Doppler frequency,sampling frame postion and size,baseline,color gain,deflection angle,wall filter,accumulated frequencies ect
4.  Acoustic power
   16-stage output power, adjustable
5. Display depth
   Can make continuous and multi-stage adjustment by using encoder
6. Fousing:
   -- Fousing:Electronic focusing+acoustic lens focusing
   -- Transmission focus: single focus,double focus,3-focus and 4-focus
   -- Continuously dynamic focusing mode is used for front end reception
7. ·B-type display:
   -- mage amplification(real-time or freeze status),max. 4-times
   -- Image vertical/horizontal overture
   -- Display depth is continuously adjustable
8. ·M-type display: Scanning speed:4-stage
9. Digital beam formation:
   -- Image whole range continuous dynamic focusing
   -- Image whole range dynamic aperture
   -- Image whole range dynamic trace change
   -- Image whole range receive delay weight summation
   -- Support semi-moment scanning, and support ±10°linear reception deflection angle
   -- Multiple beam parallel processing technology
10. Signal processing and Dopple
   ·-- Provided with dynamic filtering and orthogonal demodulation
   -- ·Provided with total gain adjustment
   -- ·Gain adjustment: 8-segment TGC
   -- ·B-type, C-type, D-type total gain, respectively adjustable
   -- ·B/W image gain and color bloodflow gain, respectively adjustable
   ·-- Doppler stereo output volume adjustment: 0-255
   -- ·Doppler baseline adjustment : 6-stage
   -- ·Pulse repetition frequency can be respectively adjusted: CFM PWD
   -- ·Provided with D-linear speed adjustment
11.Image processing function
   -- Image realizes dynamic range conversion and logarithm compression
   -- Image realizes time filtering
   -- Image realizes spatial filtering
   -- Image realizes frame correlation
   -- Image realizes edge enhancement
   -- Image realizes grey scale convertion
   -- Provided with selection of B|M-type or M-type scanning speed
   -- Provided with high-density and high frame frequency selection
   -- Provided with image convex array scanning angle, linear array scanning depth control
   -- Provided with image optimized processing: 6-stage
   -- Image left/right, up/down overturn
   -- Color grey scale bar inversion selection
   -- B/W image resolution  1024 × 768 × 8 bit (256 grey scale)
   -- Color image resolution:  1024 × 768  8 bit × 8bit × 8 bit color coding
12.Basic measurement Calculation function
   -- B mode basic measurement: distance, angle, perimeter and area(ellipse method, trace method), volume, stenosis, column diagram, cross-section diagram
   -- M-mode basic measurement: heart-rate, time, distance, speed
   -- Doppler measurement: time, heart rate, speed, acceleration
13.Obstetrics measurement Calculation function
   Gestational sac(GS), biparietal diameter (BPD), cephalo-rump length(CRL), femur length (FL), Humerus length (HL), Transverse Abdominal Diameter (TAD), backbone length (LV), occipitofrontal diameter (OFD), Abdominal circumference (AC), head circumference (HC), estimation of parietal transparent length, gestational age and expected date of childbirth.
14.Body sign
   Body sign library is divided into groups according to the body's functions, including abdomen, andrology, cardiology, gynecology, musculoskeletal, obstetrics, pediatric, smallpart，urology etc.
15.Screen displayed information
   Probe information, display mode, depth, focus, dynamic range, body sign, probe position sign, acoustic power, patient information, medical institution name, measured value, time and date, scale, scanning direction, grey scale curve, probe current operating frequency , frame frequency, B Mode total gain, C-mode total gain, menu, remark, grey scale band, puncture leading wire, PRF, wall filter, bloodflow correlation, accumulation times, TI thermal index, MI mechanical index
16.Cine function
  --Auto playback
  --Manual playback
  --Playback speed selection
  --Retrieval playback
  --Forward/reverse playback frame by frame
17.Grey scale:256
18.Interface language:Chinese, English (optional)
19.Input/Output interface
  -- Network interface
  --USB interface
  --Video interface
  --Serial communication interface
