Technical Specifications

1. Safety standard: IEC 60601-1, 60601-1-2, EN 60601
2. Power Supply: mains: 100-240V, 50/60Hz
3. Battery: built-in rechargeable polymer, 8000mAh
4. Monitor: 15’’ LCD;
  Dimension: 37*37*18 cm
5. Net weight: 8kgs
6. TGC: 8 segments
7. Body mark: 123 types
8. Scanning method: electronic convex / linear / micro-convex

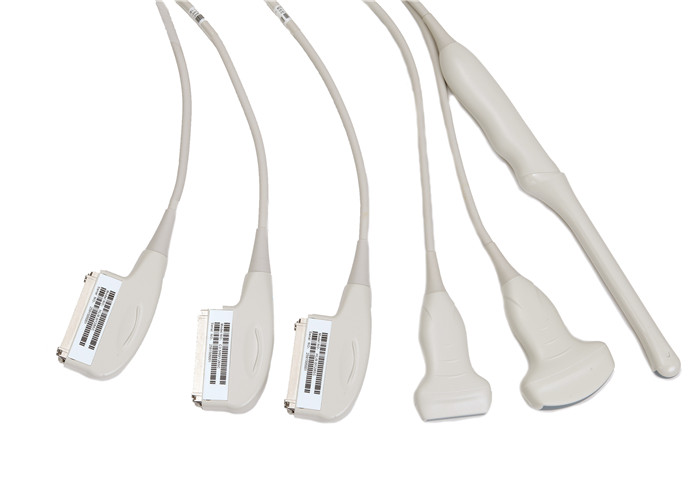

9. Supporting probe: electronic convex / linear, broadband, multi-frequency
 . THI on all probes
10. Clinical application: abdominal, obstetric, gynecology, cardiology, urology, etc;
11. Image mode: B, 2B, 4B, B/M, CFM, B/BC, Color M, PW, PRF, PDI, DPDI, Duplex, Triplex;
12. Image processing
   --Gray scale: 256
   --Image processing:image enhancement, speckle reduction, rejection, lines density
   --Panoramic Focus depth: 0-10, 5-16, 10-35
   --Focus numbers/set: 1, 2, 3, 4
   --Frame average: 0(N/A), 2, 3, 4, 5, 6, 7, 8
   --Dynamic range: 20-80 dB, 6-scale interval adjustable
   --Lines density: low, medium, standard, high
   --Rejection: 0-32
   --Speckle reduction: 1-8 levels Neat View / Pure View
   --Image enhancement: 1, 2, 3, 4 method
   --Scanning angle: 40 to 160 degrees, depending on probe
   --Scanning depth: 30-300mm, depending on probe
   --View area: 50 / 60 / 70 / 80 / 90 / 100%
   --Image flip: up / down, left / right, black / white, 90° / 180° / 270°
   --Cine-loop: 401 frames, auto / manual
   --Storage format: JPG, BMP, PNG, TIF, DCM (DICOM), AVI
13.Language: Chinese, Deutsch, English, French, Italian, Korean, Lithuanian, Magyar, Polish,
14. Romanian, Russian, Spanish Peripheral ports: Video, S-video, VGA, USB, RJ-45
