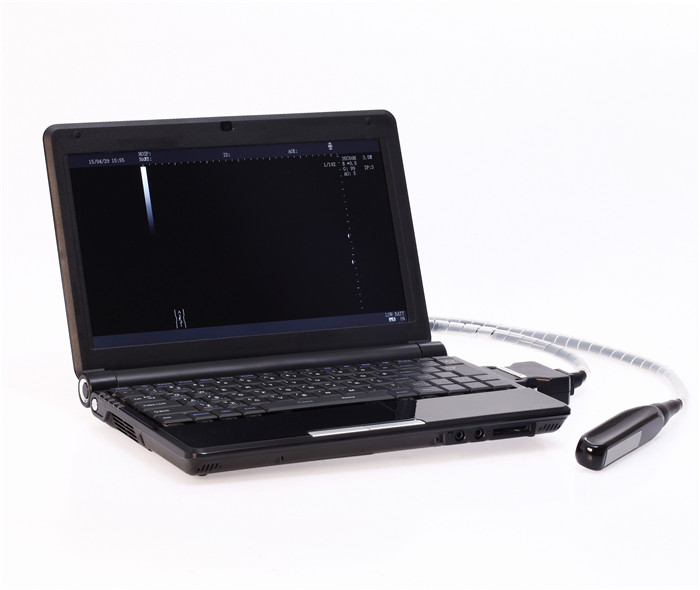

SH1300

Notebook Digital Diagnostic Ultrasound System for Human and Veterinary Use

Technical Features:
10.1”high-resolution TFT LCD
Weight: 1.5KG
Size: 25cm*18cm*2cm
Probe Frequency: 2.5MHZ-10.0MHZ (Depend on the probe types)
Probe connector: 1
Continuous dynamic variable aperture, Continuous dynamic focusing, wide band pre-amplification, log compression, TGC control, dynamic filtering, edge enhancement and frame  correlation, ETC.


Functions:
Display mode: B,B/B,4B,B/M,M
Scanning methods: Electronic Convex/ Electronic linear
Image reversing: Up/down, left/right, Black/White
Depth upgrade, zoom and scroll control, Overall gain, brightness, contrast control.
Cine loop: 256 frames, playback selectable, can be saved in USB disk or SD card and recalled for analysis.
General measurement: distance, volume, circumference, area/perimeter, angle, heart rate, fetus weight, pregnancy week, etc.
More than forty difference body marks
Image displayed with comments of date, time, scanning depth, probe type, parameter of frame correlation, focus combination, patient ID, age, sex and hospital information.
Preset: time, date, hospital name, fetal weight formula, image format, etc.
USB 2.0 interface ensures real-time image transfer to PC.
Support USB mouse operation.
Report page print

Probes for human:
Convex probe
Trans-vaginal probe
Linear probe
Cardiac probe
Probes for Veterinary Use
Convex Multi-frequency probe
Rectal linear probe
Rectal vet probe
