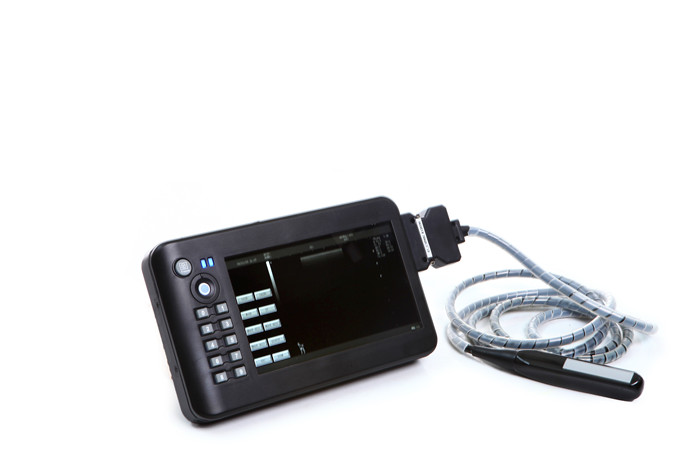

SH1400

Hand carried digital diagnostic Ultrasound System for human use

Features:
7"high-resolution TFT LCD
Weight: 0.7KG
Body Sixe:219mm*134mm*33.5mm
Probe Connector:1
The removable Li-ion battery

Functions:
Display mode: B,B/B,4B,B/M,M
Scanning methods: Electronic Convex/ Electronic linear
Image reversing: Up/down, left/right, Black/White
Depth upgrade, zoom and scroll control, overall gain, brightness, contrast control.
Cine loop:256 frames, playback selectable, can be saved in USB disk or SD card and recalled for analysis.
General measurement: distance, volume, circumference, area/perimeter, angle, heart rate, fetus weight, pregnancy week, etc.
More than forty difference body marks
Image displayed with comments of date, time, scanning depth, probe type, parameter of frame correlation, focus combination, patient ID, age, sex and hospital information.
Preset: time, date, hospital name, fetal weight formula, image format, etc.
USB 2.0 interface ensures real-time image transfer to PC.
Support USB mouse operation.
Report page print

Standard configuration:
Main unit 1set;
60R/3.5MHZ Convex array probe (2.0/3.5/4.5/5.0/5.5/6.5/7.5MHz) 1pc;
Power line 1pc;

Options:
6.5Mhz Trans-vaginal probe
7.5Mhz Linear probe
3.5Mhz Cardiac probe
